X20 Tubus Fly EVO Set Aluminium Frame

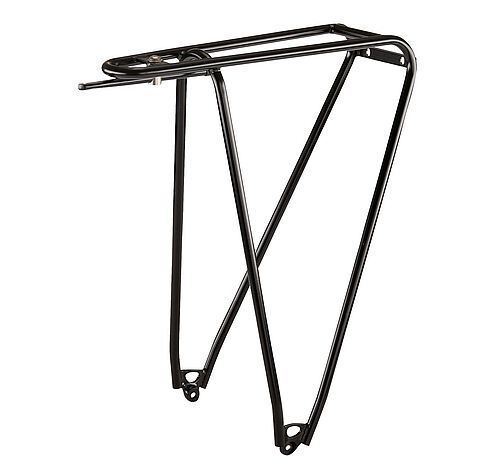

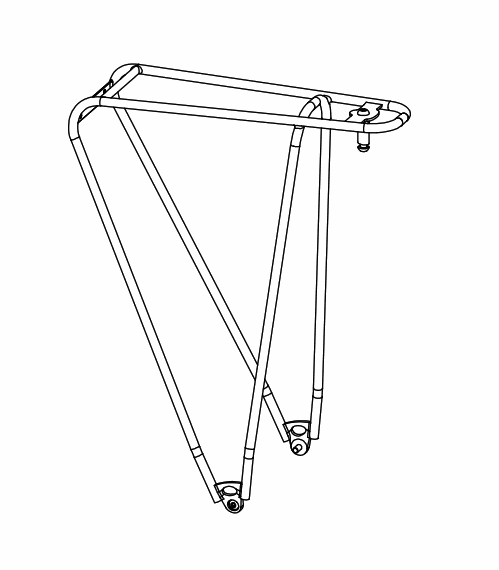

Tubus Fly Evo for X20 Aluminium Frames

Weighing just 350 grams, the Fly Evo can certainly shoulder some weight. The 3D feet technology ensure perfect power transfer at the rear stay, while the screws are cleanly countersunk.

· Material: 25CrMo4 steel
· Max. load capacity: approx. 20 kg
· Suitable for rear lights with a bolt spacing of 50 mm
· Tube Ø pannier mount: approx. 10 mm
· Suitable for 26" and 28"

This Kit include:

• x1. Rear rack Fly Evo.

• x1. Gravel rack adapter left.

• x1. Gravel rack adapter right.

• x1. Mounting-Set Bridge.

• x5. Hexagon socket button head screw DIN 7380 M5x10 inox.

• x1. Cable Clamp for rear Light.

• x2. Hexagon Socket Countersunk Head Cap Screw DIN 7991 A-2 M5 X 16mm

• x3. Hexagon socket button head screw DIN 7380 A-2 5 X 12

Do not attach child seats or trailers to the rack.
